全局滤波器高光谱显微镜

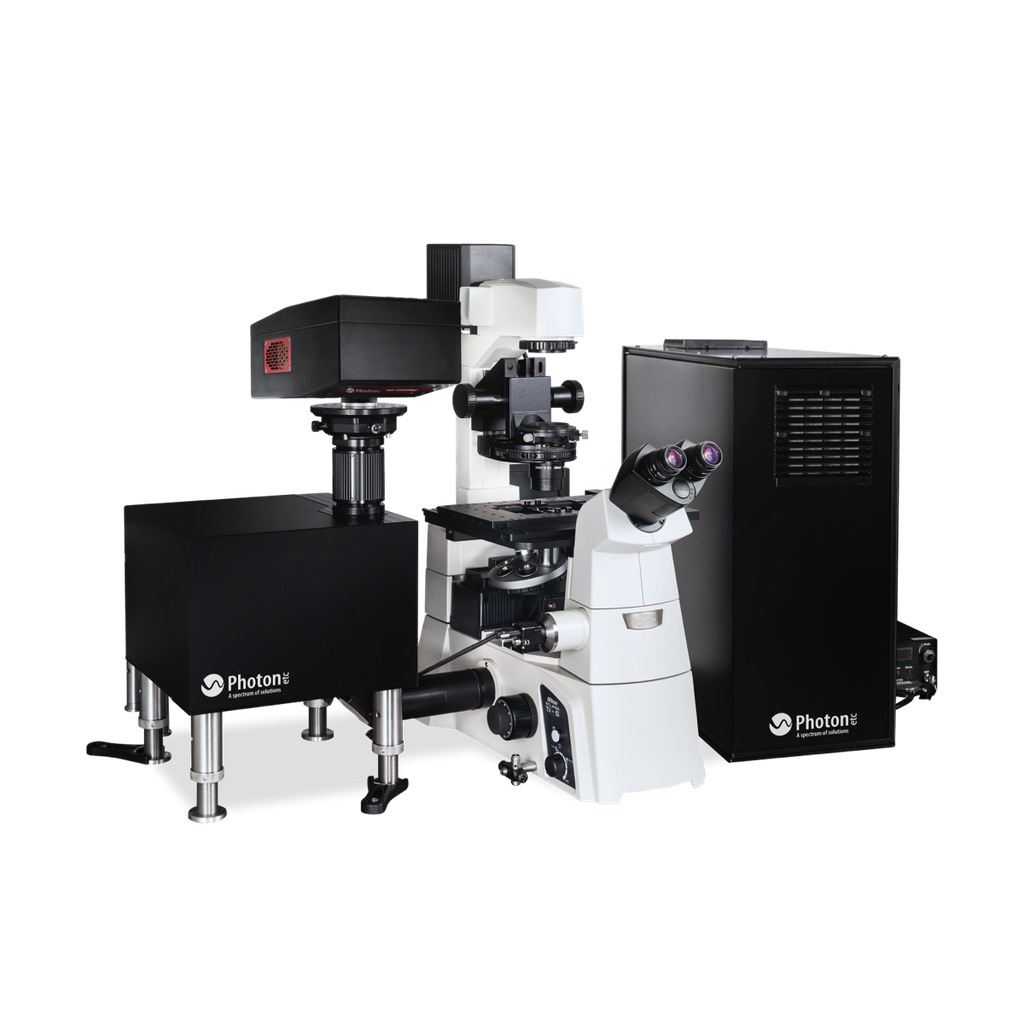

IMA是一款可收集可见、红外、近红外范围(400-1620nm）光谱和空间信息的高光谱显微镜。该系统能够快速地对光致发光、电致发光、荧光、反射率和透射率进行成像。基于高通量的全局滤波器，IMA比传统的点扫或线扫系统，采集速度更快，效率更高。
|
技术参数 |
可见光波段 |
近红外波段 |
|
光谱范围 |
400-1000nm |
900-1620nm |
|
光谱分辨率（FWHM） |
＜2nm |
＜4nm |
|
通道类型 |
连续可调 |
连续可调 |
|
空间分辨率 |
亚微米-与显微镜物镜光阑相关 |
亚微米-与显微镜物镜光阑相关
|
|
相机 |
CCD,EMCCD,sCOMS |
Photon公司砷镓铟相机（ZephIR™ 1.7 or Alizé™ 1.7)） |
|
激发波长（最多三激光） |
405, 447, 532, 561, 660, 730, 785, 808 nm (其他波长可定制) |
405, 447, 532, 561, 660, 730, 785, 808 nm (其他波长可定制) |
|
显微镜 |
正置、倒置、科研级显微镜 |
正置、倒置、科研级显微镜 |
|
白光激发 |
透射、反射、汞灯、卤素灯 |
透射、反射、汞灯、卤素灯 |
|
观测模式 |
荧光、暗场（油镜或干镜） |
荧光、暗场（油镜或干镜） |
应用案例
相关论文
Multimodal Microscale Imaging of Textured Perovskite−Silicon Tandem Solar Cells
Quantification of Nitric Oxide Concentration Using Single-Walled Carbon Nanotube Sensors
Rapid Open-Air Fabrication of Perovskite Solar Modules
Nanoreporter of an Enzymatic Suicide Inactivation Pathway
Intermediate scale bandgap fluctuations in ultrathin Cu(In,Ga)Se2 absorber layers
Epitaxial Metal Halide Perovskites by Inkjet‐Printing on Various Substrates
Proton Radiation Hardness of Perovskite Tandem Photovoltaics
Stable Hexylphosphonate-Capped Blue Emitting Quantum-Confined CsPbBr3 NanoPlatelets
Imaging Electron, Hole and Ion Transport in Halide Perovskite
Performance-Limiting Nanoscale Trap Clusters at Grain Junctions in Halide Perovskites
A Highly Emissive Surface Layer in Mixed-Halide Multication Perovskites
A Hot-Carrier Assisted InAs/AlGaAsQuantum-Dot Intermediate-Band Solar Cell
An in Vivo Nanosensor Measures Compartmental Doxorubicin Exposure
Hyperspectral Imaging for Intraoperative Diagnosis of Colon Cancer Metastasis in a Liver
A Carbon Nanotube Optical Reporter Maps Endolysosomal Lipid Flux
A Carbon Nanotube Optical Sensor Reports Nuclear Entry via a Noncanonical Pathway
A Carbon Nanotube Reporter of MicroRNA Hybridization Events In Vivo
On the Origin of the Spatial Inhomogeneity of Photoluminescence in Thin-Film CIGS Solar Devices
Optical Imaging of Light-Induced Thermopower in Semiconductors
Hyperspectral Microscopy of Near Infrared Fluorescence Enables 17-Chirality Carbon Nanotube Imaging
Photoluminescent Carbon Nanotubes Interrogate the Permeability of Multicellular Tumor Spheroids
Dark-Field Spectral Imaging Microscope for Localized Surface Plasmon Resonance-Based Biosensing
Cellulose Nanocrystals With Tunable Surface Charge for Nanomedicine
Quantitative Luminescence Mapping of Cu(In, Ga)Se2 Thin-Film Solar Cells
Solvent-Mediated Self-Assembly of Hexadecanethiol on GaAs (001)
Evaluation of Micrometer Scale Lateral Fluctuations of Transport Properties in CIGS Solar Cells
Conic Hyperspectral Dispersion Mapping Applied to Semiconductor Plasmonics
Contactless Mapping of Saturation Currents of Solar Cells by Photoluminescence
Characterization of Solar Cells Using Electroluminescence and Photoluminescence Hyperspectral Images
